Our transmission chains are meticulously designed for robust performance in high-load industrial applications, such as conveyor systems and heavy machinery. Constructed from premium alloy steels with heat-treated components, these chains offer superior resistance to wear, fatigue, and shock loads, making them an ideal choice for environments requiring consistent power delivery.
Available in various pitches ranging from 42.01 mm to 78.10 mm, they conform to international standards like ISO and ASME, providing options for chain size and measurement to match specific operational needs. Whether integrated into roller chain setups or standalone drive chain configurations, our products ensure minimal downtime and enhanced productivity, backed by rigorous quality testing and customizable features for sectors including mining, manufacturing, and construction.
Heavy Duty Cranked-Link Transmission Chain Specifications

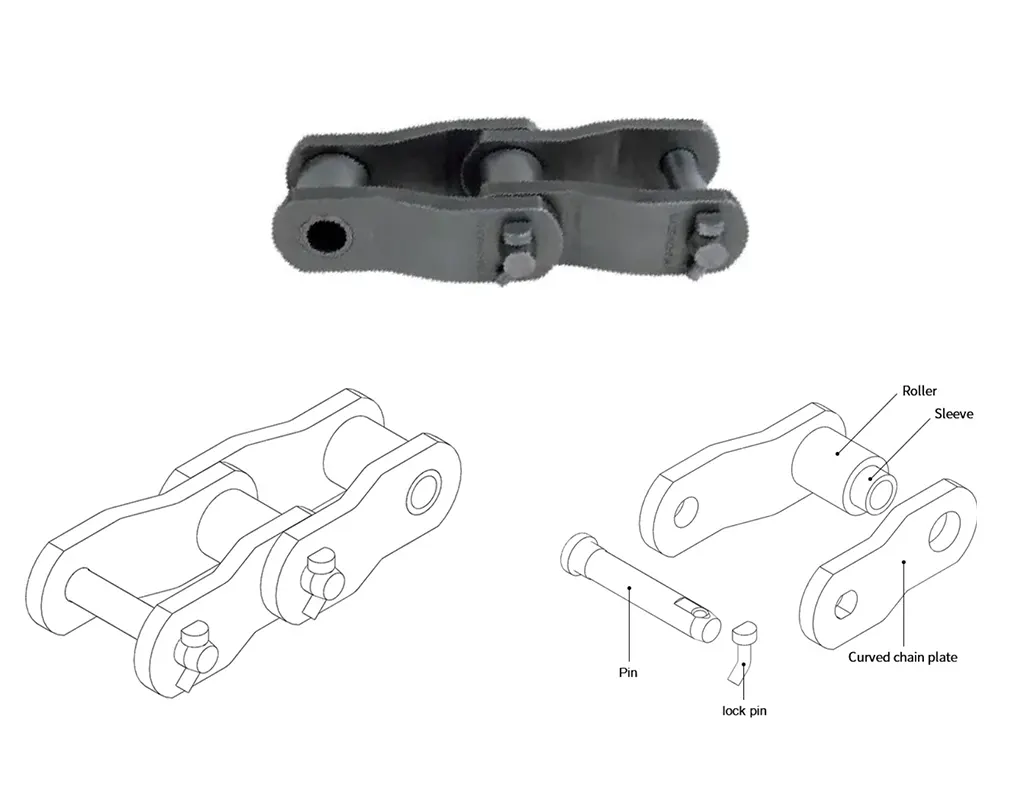

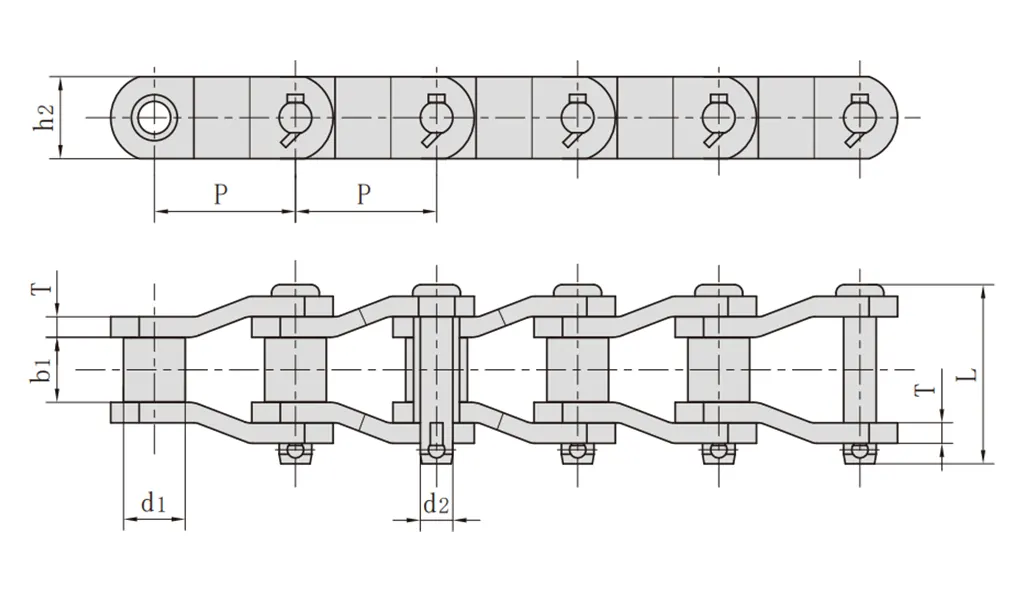

The table below highlights essential parameters for a range of models, including pitch, roller diameter, and tensile strengths, enabling precise matching to your operational demands. These specs are derived from rigorous testing to ensure compliance with international standards, providing a foundation for reliable drive chain integration.
| Chain No. | Pitch | Roller diameter | Width between inner plates | Pin diameter | Pin length | Plate depth | Plate thickness | Ultimate tensile strength | Average tensile strength | Weight per meter |
| P | d1 max |
b1 min |
d2 max |
L max |
h2 | T | Q min |
Q0 | q | |
| mm | mm | mm | mm | mm | mm | mm | kN/lbf | kN | kg/m | |
| MXS432 | 42.01 | 22.23 | 25.40 | 11.10 | 57.9 | 28.50 | 4.8 | 80.80/18363 | 88.0 | 5.65 |
| R3112 | 50.80 | 28.70 | 31.00 | 14.20 | 73.9 | 41.40 | 6.4 | 168.90/38385 | 185.0 | 10.70 |
| R3112F1 | 50.80 | 28.70 | 31.00 | 15.06 | 79.5 | 41.40 | 7.9 | 195.60/44454 | 225.0 | 12.23 |
| SS2065 | 50.80 | 28.58 | 32.50 | 15.05 | 79.5 | 38.00 | 7.9 | 220.00/49998 | 242.0 | 12.14 |
| 2010 | 63.50 | 31.75 | 38.10 | 15.90 | 89.0 | 47.80 | 7.9 | 250.00/56818 | 275.0 | 13.53 |
| 2010H | 63.50 | 31.75 | 31.75 | 15.88 | 97.0 | 41.50 | 9.5 | 250.00/56818 | 275.0 | 11.91 |
| 2010SH | 63.50 | 31.75 | 38.10 | 15.88 | 97.0 | 41.50 | 9.5 | 300.00/68181 | 330.0 | 12.00 |
| SS588F4 | 66.27 | 22.23 | 30.40 | 11.11 | 60.0 | 32.00 | 4.8 | 90.00/20454 | 103.0 | 5.05 |
| MXS882 | 66.27 | 22.23 | 28.58 | 11.10 | 68.5 | 28.50 | 6.4 | 115.60/26272 | 124.8 | 5.30 |
| SS588 | 66.27 | 22.23 | 28.60 | 11.11 | 63.7 | 28.60 | 6.4 | 130.00/29545 | 144.0 | 5.46 |
| SS588F1 | 66.27 | 22.23 | 27.00 | 11.11 | 62.0 | 28.60 | 6.4 | 88.90/20205 | 97.8 | 5.39 |
| SS588F2 | 66.27 | 22.23 | 27.00 | 9.53 | 59.0 | 25.40 | 5.6 | 84.46/19195 | 91.2 | 4.26 |
| MX603 | 76.20 | 22.50 | 38.00 | 14.00 | 88.0 | 40.00 | 8.0 | 147.00/33408 | 161.0 | 9.20 |
| MXS3011F1 | 77.90 | 31.75 | 39.60 | 19.05 | 100.0 | 57.00 | 9.7 | 407.50/92612 | 468.0 | 17.68 |
| 2512 | 77.90 | 41.28 | 39.60 | 19.05 | 100.0 | 57.00 | 9.7 | 340.00/77272 | 367.2 | 18.40 |
| 2512F2 | 77.90 | 41.28 | 38.50 | 19.05 | 103.4 | 60.00 | 10.0 | 400.00/90909 | 420.0 | 20.28 |
| 2512F3 | 77.90 | 41.28 | 40.00 | 18.60 | 104.2 | 46.70 | 11.0 | 340.00/77271 | 391.0 | 18.15 |
| 2512F4 | 77.90 | 41.28 | 39.60 | 19.05 | 110.0 | 60.00 | 12.0 | 407.50/92612 | 468.0 | 23.60 |
| SS568H | 77.90 | 41.30 | 39.70 | 19.05 | 97.6 | 57.00 | 9.5 | 340.00/77272 | 367.2 | 19.80 |
| SS568HF2 | 77.90 | 31.75 | 39.70 | 19.05 | 98.5 | 57.00 | 9.5 | 447.00/101588 | 491.0 | 16.90 |
| SS568HF3 | 77.90 | 41.30 | 39.70 | 19.05 | 104.1 | 57.00 | 11.0 | 489.3/111203 | 562.0 | 20.85 |
| 2510 | 78.10 | 31.75 | 36.90 | 16.00 | 94.8 | 40.00 | 8.0 | 271.0/61590 | 292.6 | 10.72 |
| 2510F1 | 78.10 | 31.75 | 36.60 | 16.00 | 88.9 | 38.10 | 8.0 | 124.5/28295 | 137.0 | 9.93 |
| 2510F1-CF1 | 78.10 | 31.75 | 36.60 | 16.00 | 88.9 | 38.10 | 8.0 | 124.5/28295 | 137.0 | 10.00 |
| 2510F2 | 78.10 | 31.75 | 36.60 | 15.75 | 88.0 | 38.10 | 8.0 | 225.0/51135 | 248.0 | 11.70 |
| 2510H | 78.10 | 31.75 | 36.90 | 16.50 | 95.3 | 45.00 | 9.5 | 280.4/63727 | 302.8 | 12.70 |
| MXS3075 | 78.10 | 31.75 | 38.10 | 16.46 | 93.5 | 44.50 | 9.7 | 334.0/75907 | 365.8 | 13.45 |
| MXS3075F1 | 78.10 | 33.00 | 38.10 | 16.46 | 94.5 | 44.50 | 9.7 | 334.0/75907 | 365.8 | 14.00 |
| MXS3075F1SH | 78.10 | 33.00 | 38.10 | 16.46 | 94.5 | 44.45 | 9.7 | 360.0/81817 | 414.0 | 13.96 |
| MXS3075F2 | 78.10 | 31.75 | 38.10 | 17.81 | 90.0 | 45.00 | 8.0 | 333.2/75726 | 365.8 | 12.20 |
| MXS3075F3 | 78.10 | 33.30 | 38.10 | 16.46 | 94.5 | 44.50 | 9.7 | 334.0/75908 | 384.0 | 14.00 |
| MXS3075F4 | 78.10 | 33.30 | 38.10 | 17.15 | 94.5 | 44.50 | 9.7 | 360.0/81817 | 414.0 | 14.00 |
Note: *Selecting the right transmission chain begins with understanding its core dimensions and performance metrics, which directly influence compatibility and longevity in high-stress applications.
Key Features
Heavy duty cranked-link transmission chains excel in environments where robustness and adaptability are paramount, offering a suite of engineered attributes that surpass conventional designs.
First, their construction from high-grade alloy steels with hardened round parts provides exceptional resistance to abrasion and impact, ensuring consistent performance over extended periods.
Second, the cranked-link joint structure simplifies on-site adjustments, such as offsetting for odd-numbered pitches or quick repairs, which minimizes equipment downtime.
Third, advanced heat treatment on pins and rollers enhances fatigue strength, allowing these chains to withstand repeated stress cycles without compromising integrity.
Overall, these features translate to lower maintenance costs and higher operational reliability, making them a strategic choice for professionals managing complex drive chain systems.
Product Applications
From a broad perspective, heavy duty cranked-link transmission chains are deployed in scenarios demanding high torque and resilience against environmental challenges, such as dust-laden or low-speed operations.
In mining, they facilitate reliable power transfer in conveyor systems and heavy equipment, where their shock-load resistance prevents failures under variable stresses.
In metallurgical processes, these chains support machinery handling molten materials or abrasive particles, leveraging their wear-resistant properties to maintain efficiency.
Additionally, in construction and large-scale engineering, they integrate seamlessly into roller chain assemblies for precise motion control, adapting to non-coplanar sprocket setups. By addressing these diverse needs, the chains offer a versatile solution that enhances productivity across industries, particularly where alignment precision and durability are critical.
Various types of transmission chains and sprockets
Transmission chains and sprockets form a critical pairing in industrial power transmission systems, enabling efficient torque transfer from motors to driven components in applications such as conveyors, machinery, and heavy equipment. At Ever-Power, we specialize in providing high-quality solutions that ensure seamless compatibility and long-term reliability, adhering to international standards like ISO and ASME for optimal performance under demanding conditions.
We offer an extensive range of chains and sprockets, including standard roller chains, heavy-duty cranked-link variants, and precision-engineered sprockets in various materials like alloy steel and stainless steel. Our diverse inventory supports multiple industries, from mining to manufacturing, with options for custom configurations to meet specific load and speed requirements. We invite you to consult our experts for personalized recommendations, ensuring you receive the most suitable products backed by rigorous quality testing and competitive warranties. Contact us today to discuss your needs and explore our comprehensive catalog.
